Derale Series 8000 Plate & Fin Transmission Cooler Kit 13503

Derale Series 8000 Plate & Fin Transmission Cooler Kit
Derale
  • Our Price: $56.71
  • Shipping:FREE SHIPPING
  • Part Number: 13503
  • UPC: 083277135033
  • Rating: (5)
item enlarge

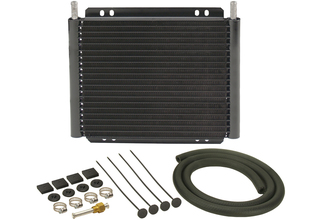

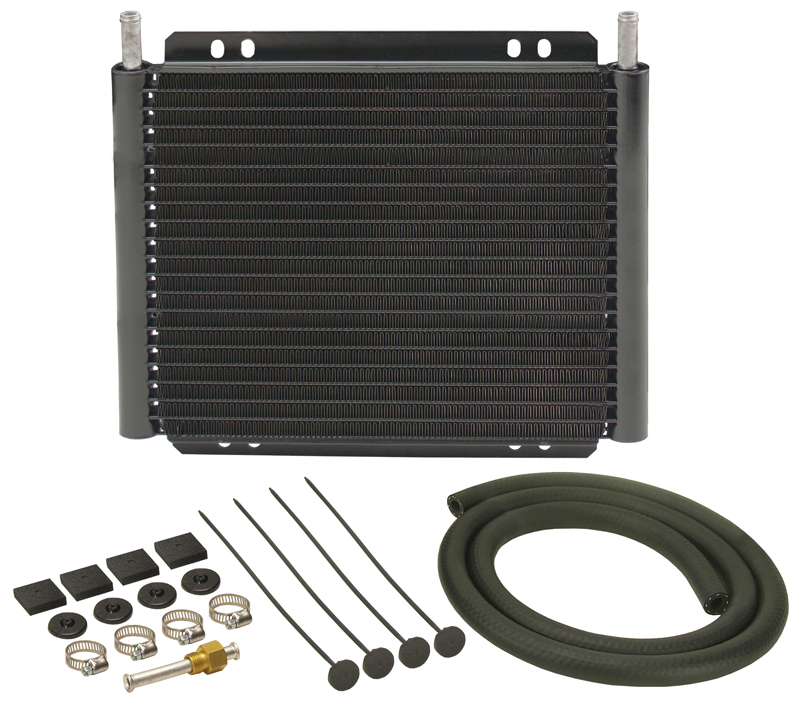

Series 8000 Plate & Fin Transmission Cooler Kit

  • Part #: 13503
  • GVW: 20,500
  • Inlet Size: 10-1/4 In.
  • Inner Horizontal Mounting Size: 5-1/4 In
  • Outer Horizontal Mounting Size: 6-3/4 In
  • Vertical Mounting Size: 8 In.
  • Width: 11 In. x Height: 8-3/4 In. x Depth: 7/8 In.
  • Installation Instructions

$56.71

Free Shipping
Ships between 10/23/17 - 10/24/17
  • The Derale Series 8000 Plate & Fin Transmission Cooler Kit guards your trans from failure and fluid breakdown
  • Lowers fluid temperatures, improving your transmission's performance
  • Furnaced-brazed aluminum construction is sturdy and strong
  • High-flow 3/4" turbulators are built in to maximize your cooling efficiency
  • Available in 4 sizes to fit your vehicle
  • 11/32" hose barb inlets
  • Includes high temp/high pressure hose, mounting hardware, and Insta-Dapt radiator adapter
  • 1 Year Warranty

Cool your tranny with the power of plates with the Derale Series 8000 Plate & Fin Transmission Cooler Kit. This cooler's hefty plate and fin design keeps your transmission fluid much cooler, preventing fluid breakdown and part failure. The 8000 Series Derale Cooler will significantly extend the life of your transmission.

Choose from four different sizes of Derale 8000 Series Plate & Fin Transmission Coolers based on your GVW and engine bay size. It's built from furnace-brazed aluminum for a sturdy, rust-free construction that lasts. Integrated 3/4" high-flow turbulators shake up fluid as it passes through, maximizing your heat dispersion and cooling efficiency.

The Derale Series 8000 Plate & Fin Transmission Cooler Kit includes an Insta-Dapt radiator adapter, high pressure/high temperature hose, and mounting hardware, and comes with 11/32" hose barb inlets. Backed by a 1-Year Warranty.

Derale Series 8000 Plate & Fin Transmission Cooler Kit Customer Reviews

Overall:
Performance:
Quality:
Appearance:

Overall Rating:

5.0 of 5

Average Install Time: 2+ Hours

Showing 1 of 5 reviews. See All Reviews.

Overall:
Performance:
Quality:
Appearance:

I haven't had the time to tow my trailer since installation so I don't know how well it performs yet. Installation time was aprox. 4 hrs. on a 2017 Honda Pilot (had to remove the entire front grill to access and remove the front bumper). While the unit is small in dimensions it is well made and I am sure it will perform. I compared this to another company's model (cheaper) and found this one is of higher quality .

Install Time: 2+ Hours

Showing 1 of 5 reviews. See All Reviews.
