- The MSD Billet Distributor is a complete performance HEI upgrade engineered with race inspired design for dependable spark energy and precise timing control
- Precision CNC machined billet aluminum housing and base for strength and refined appearance
- Digital HEI Module and Coil with 8.5 amp single spark inductive discharge ignition providing full spark energy to 9,000 RPM
- Adjustable centrifugal advance assembly with tig welded components nylon pads and QPQ coated chrome moly weights and advance plate for reduced friction
- Three spring sets and four stop bushings allowing up to 24 timing curves with option to lock out mechanical advance for race use
- Vacuum advance canister for improved economy with lockout capability polished QPQ coated shaft sealed ball bearing and special oil tract for enhanced lubrication
- Backed by a 1-Year Warranty
From classic muscle cars and street rods to competitive circle track machines, dependable ignition performance is essential when pushing your engine to its limits. Clean underhood wiring, simple installation, and strong spark energy all contribute to a setup you can trust on the street or at the track. Designed as a complete performance HEI upgrade with race inspired engineering, the MSD Billet Distributor.

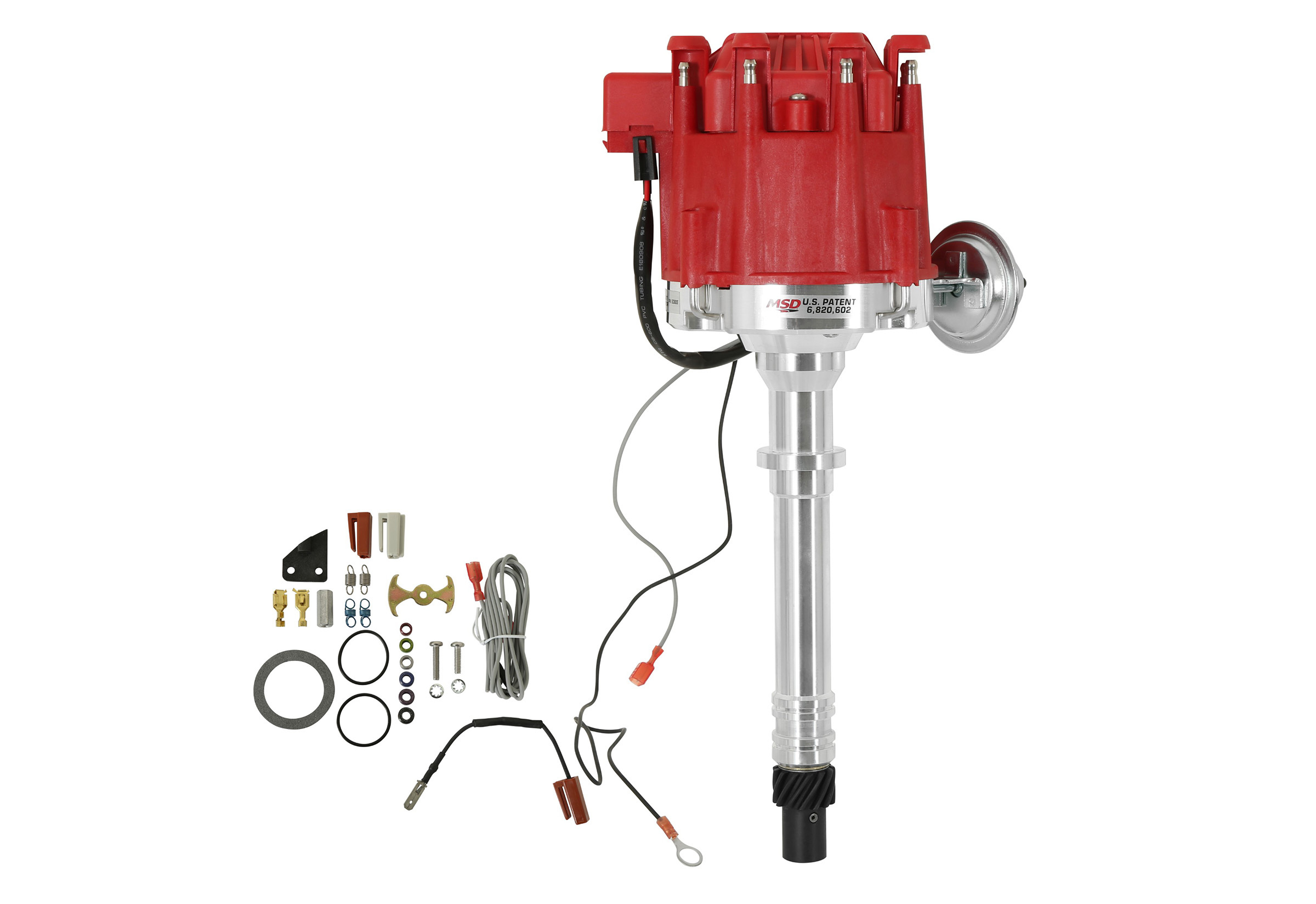

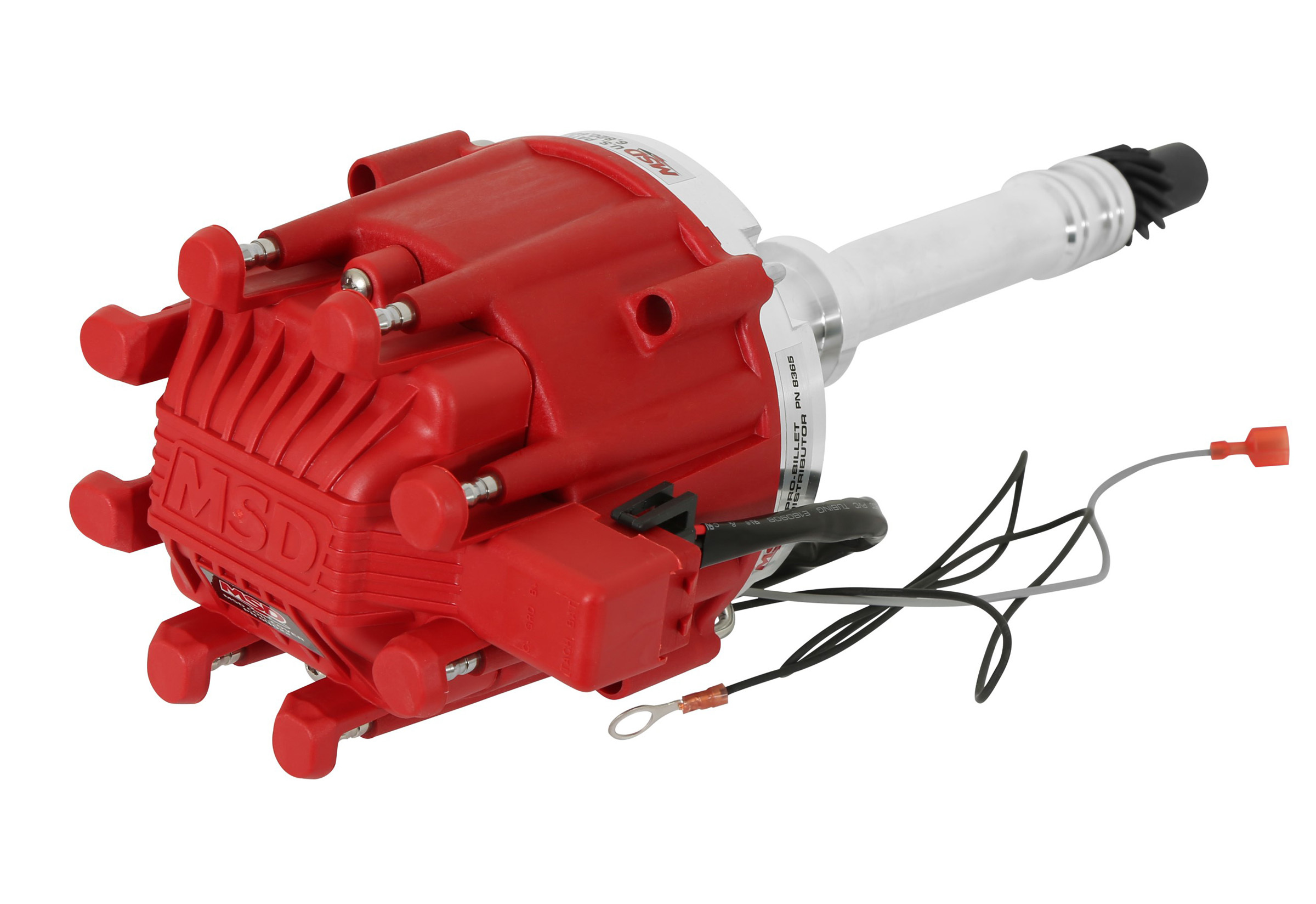

The MSD Billet Distributor is built around a precision CNC machined billet aluminum housing and base, delivering strength and great looks in one package. It is supplied with a Digital HEI Module and Coil, including an 8.5 amp single spark inductive discharge ignition module PN 83647 and MSD HEI Coil PN 8225, providing full spark energy output to 9,000 RPM with improved dwell and timing control. The adjustable centrifugal advance assembly is tig welded to the distributor shaft and uses staked and welded weight pins, nylon pads for smooth operation, and fine blanked chrome moly steel weights and advance plate that are QPQ coated to reduce friction. Three sets of springs and four stop bushings allow up to 24 different timing curves, and the mechanical advance can easily be locked out for race applications. A vacuum advance canister supports improved economy and can also be locked out if needed. The polished steel shaft is QPQ coated and guided by a sealed ball bearing, and a special oil tract improves lubrication to the distributor and cam gear. It is supplied with a brass terminal cap, rotor, coil cover, and heavy duty gear for ready installation. Note that PN 8365 is designed to replace HEI distributors that use a 4 pin ignition module, and the unit is CARB E.O. approved.
With advanced materials, precise adjustability, and race proven construction, this distributor delivers the strength, accuracy, and spark energy demanded by serious enthusiasts. It is a complete ignition solution engineered for both performance and reliability. Backed by a 1-Year Warranty.
