- 135 millijoules per spark
- 535 primary volts output
- High-speed RISC microcontroller
- Two adjustable rev limits (100 RPM increments)
- Start retard feature
- Single-stage nitrous retard
- 2-step rev limiter
- .7 Amp per 1,000 RPM
- 12–18 Volts, Negative Ground
- LED diagnostic display
- 12,500 RPM with 14.4 Volts

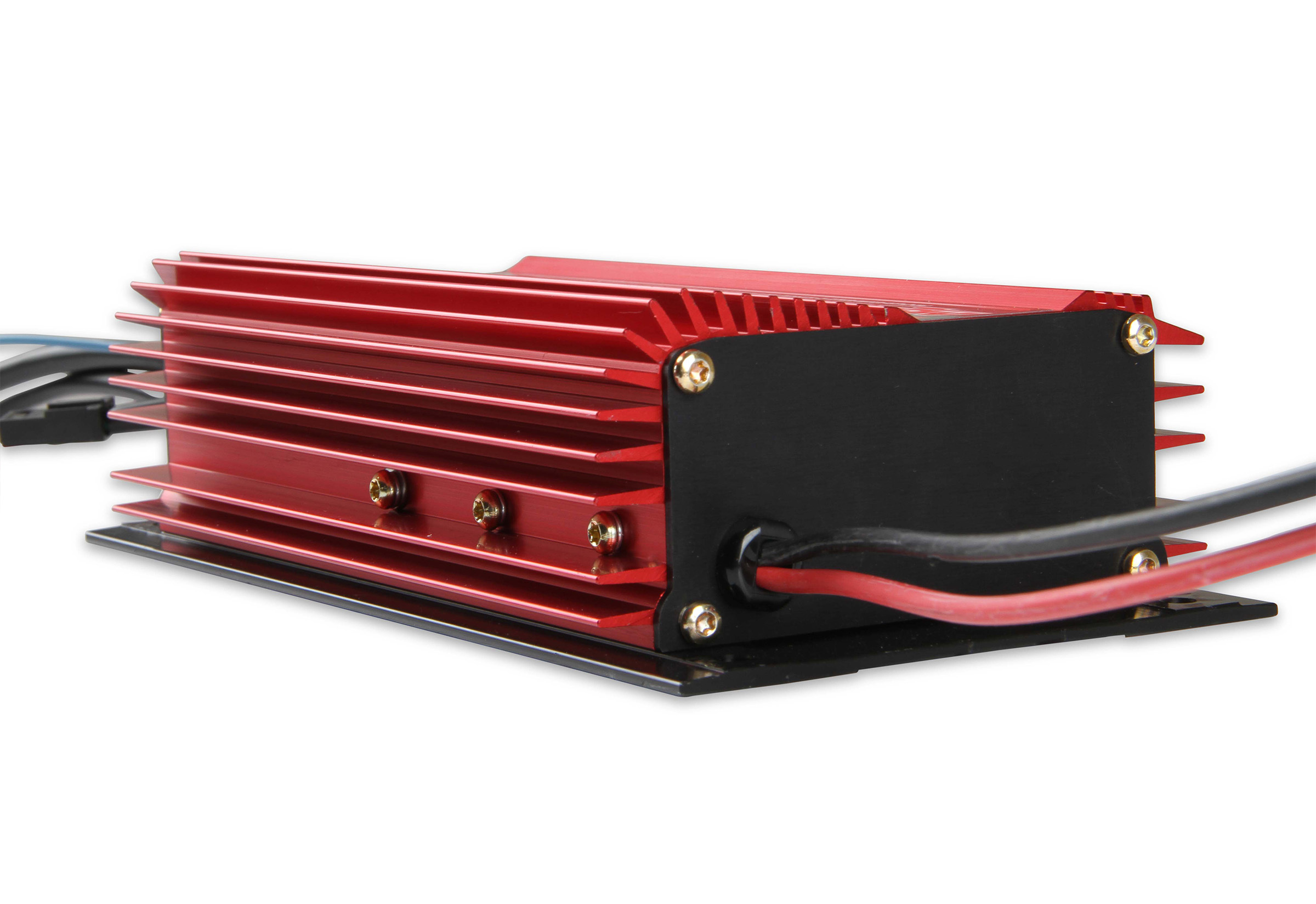

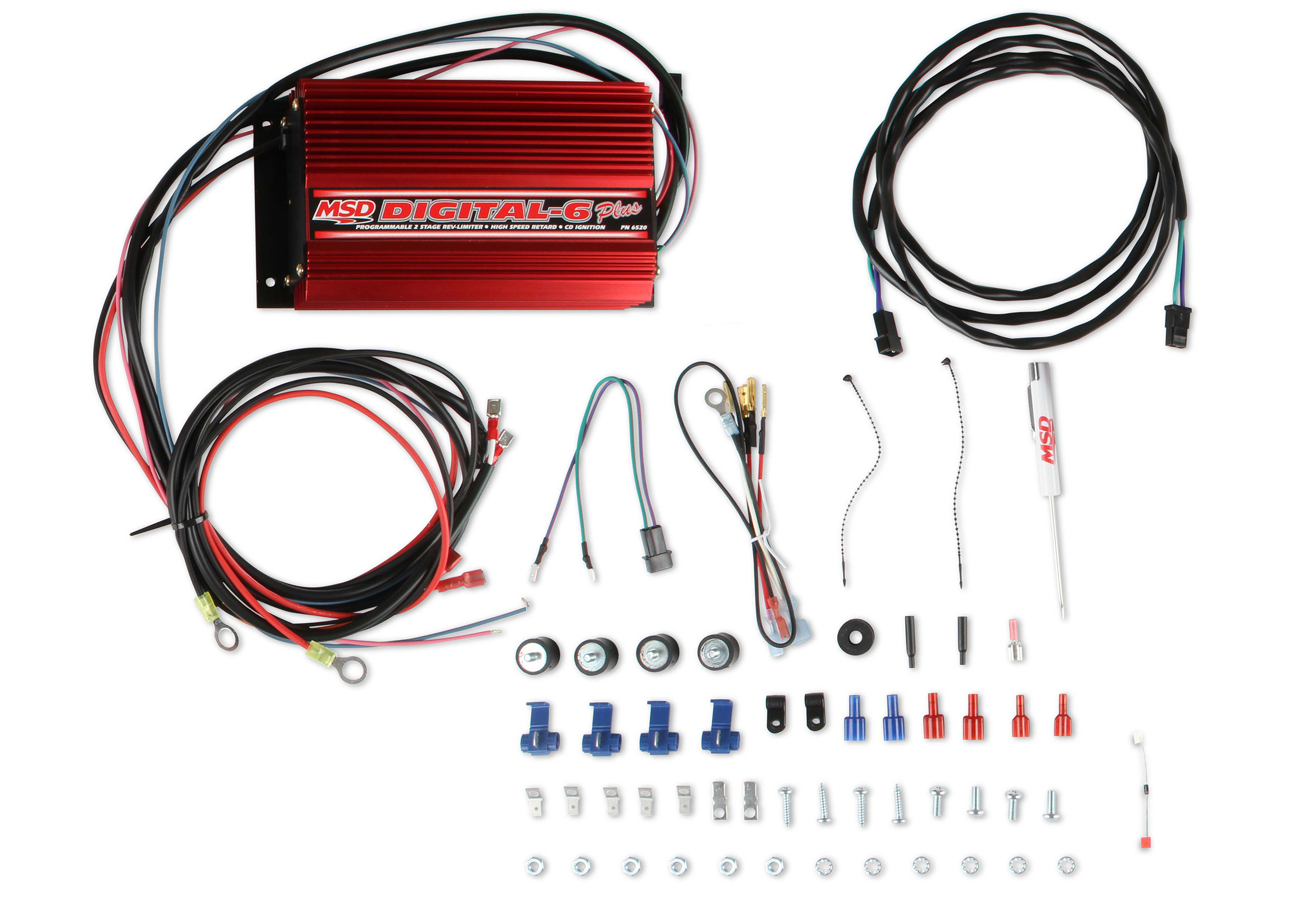

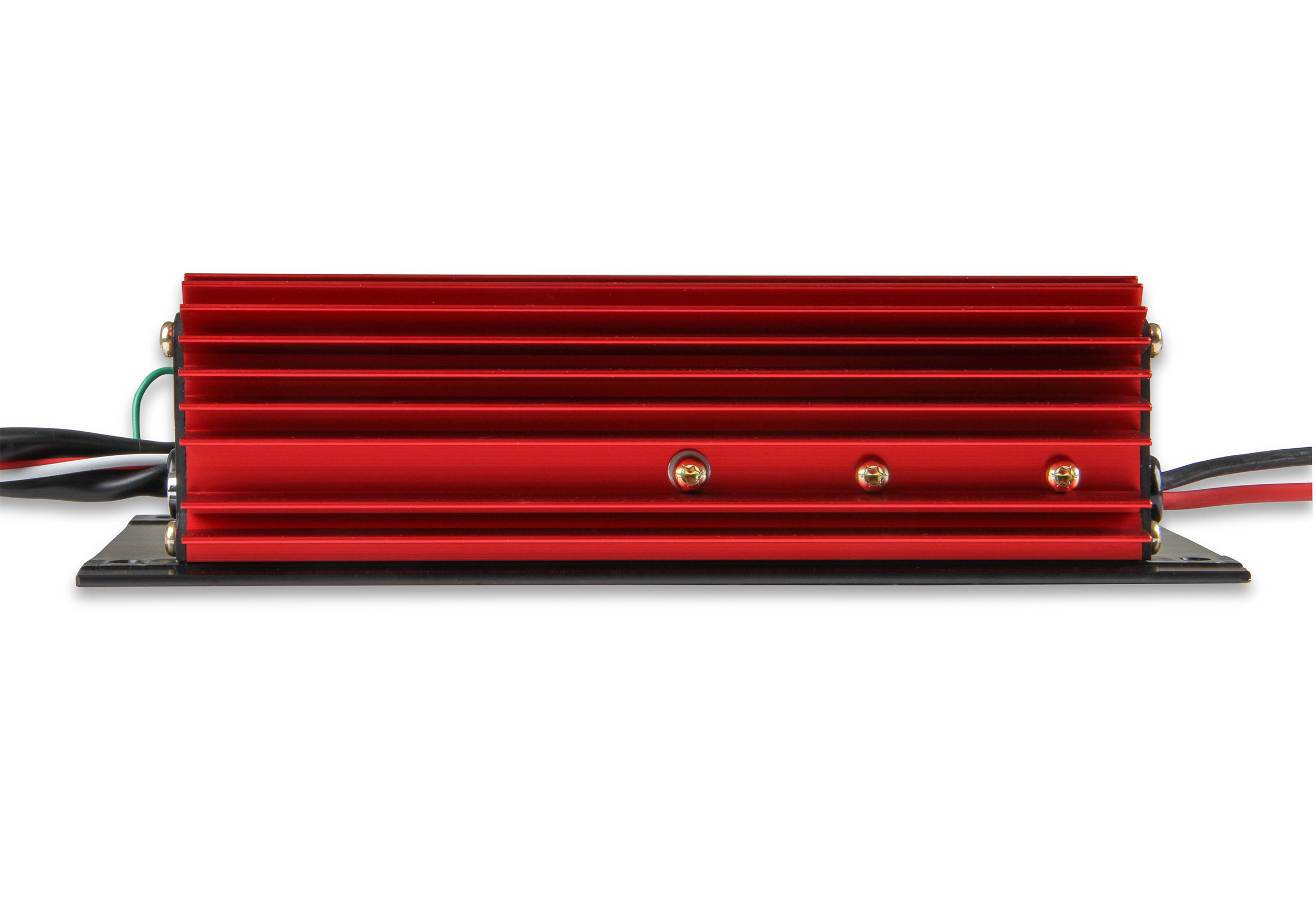

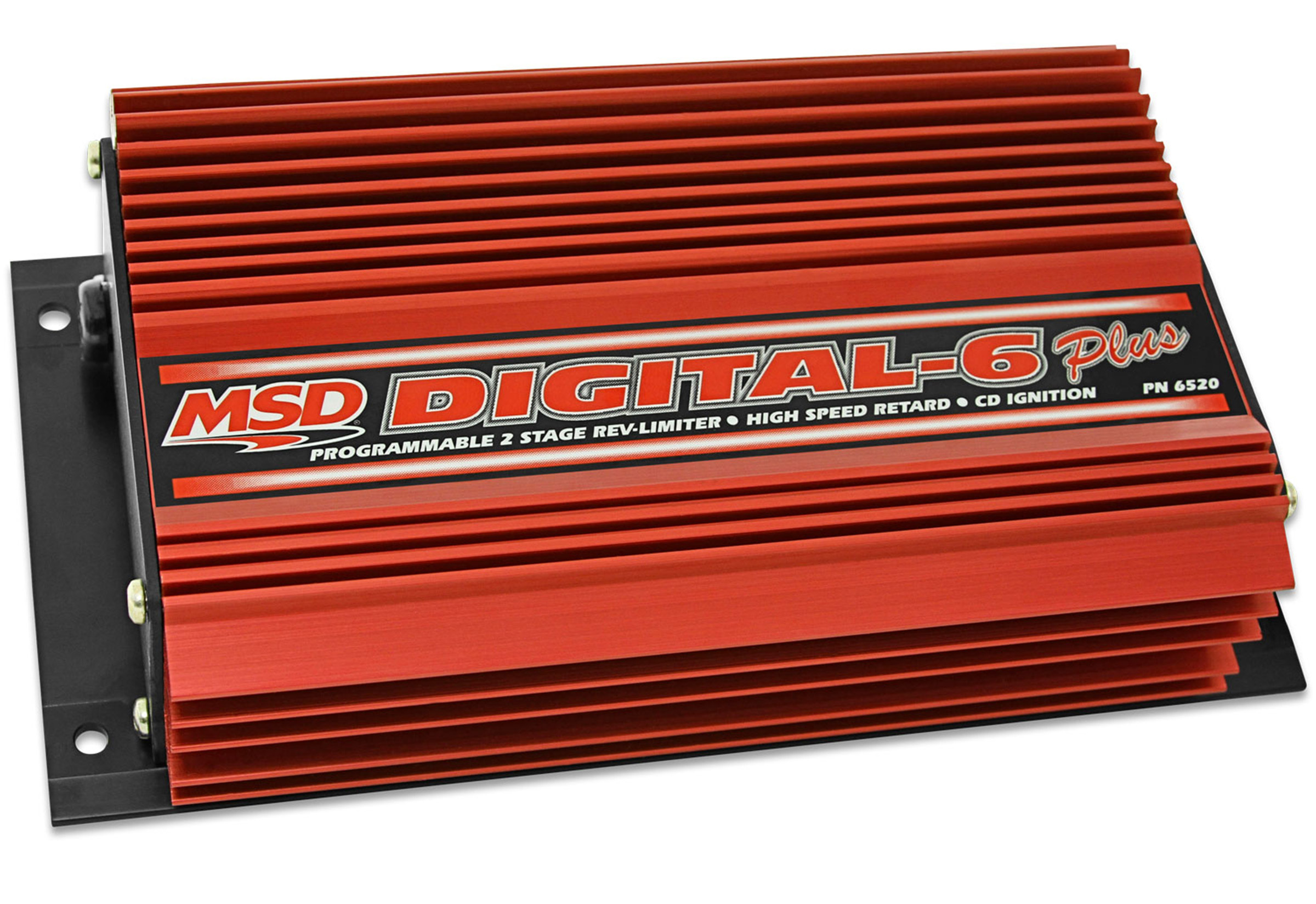

The MSD Digital 6-Plus Ignition Control delivers 135 millijoules of spark energy and 535 primary volts using a high-speed RISC microcontroller for precise timing and rpm accuracy. The controller continuously analyzes inputs such as supply voltage and trigger signals to maintain timing accuracy within 1° and rpm limits within 1%.
Features include two adjustable rev limits, start retard, a single-stage nitrous retard, and a 2-step rev limiter. The system accepts points, amplifier, and magnetic pickup inputs and operates on 4, 6, or 8-cylinder engines.
