MSD Ultra 6A Ignition Control Box

• The MSD Ultra 6A Ignition Control Box provides capacitive discharge multi spark performance for strong, consistent ignition from idle to redline
• Delivers 135mJ to 150mJ of spark energy with multiple sparks for improved combustion and throttle response
• Maintains consistent output at high RPM unlike stock inductive systems that lose coil charge time
• Fully protected against open coil, shorted coil, and open load conditions with EMI filtered circuitry
• Operates on 7 to 28 volt systems with 7 volt start capability and supports up to 15000 RPM with 14.4 volts

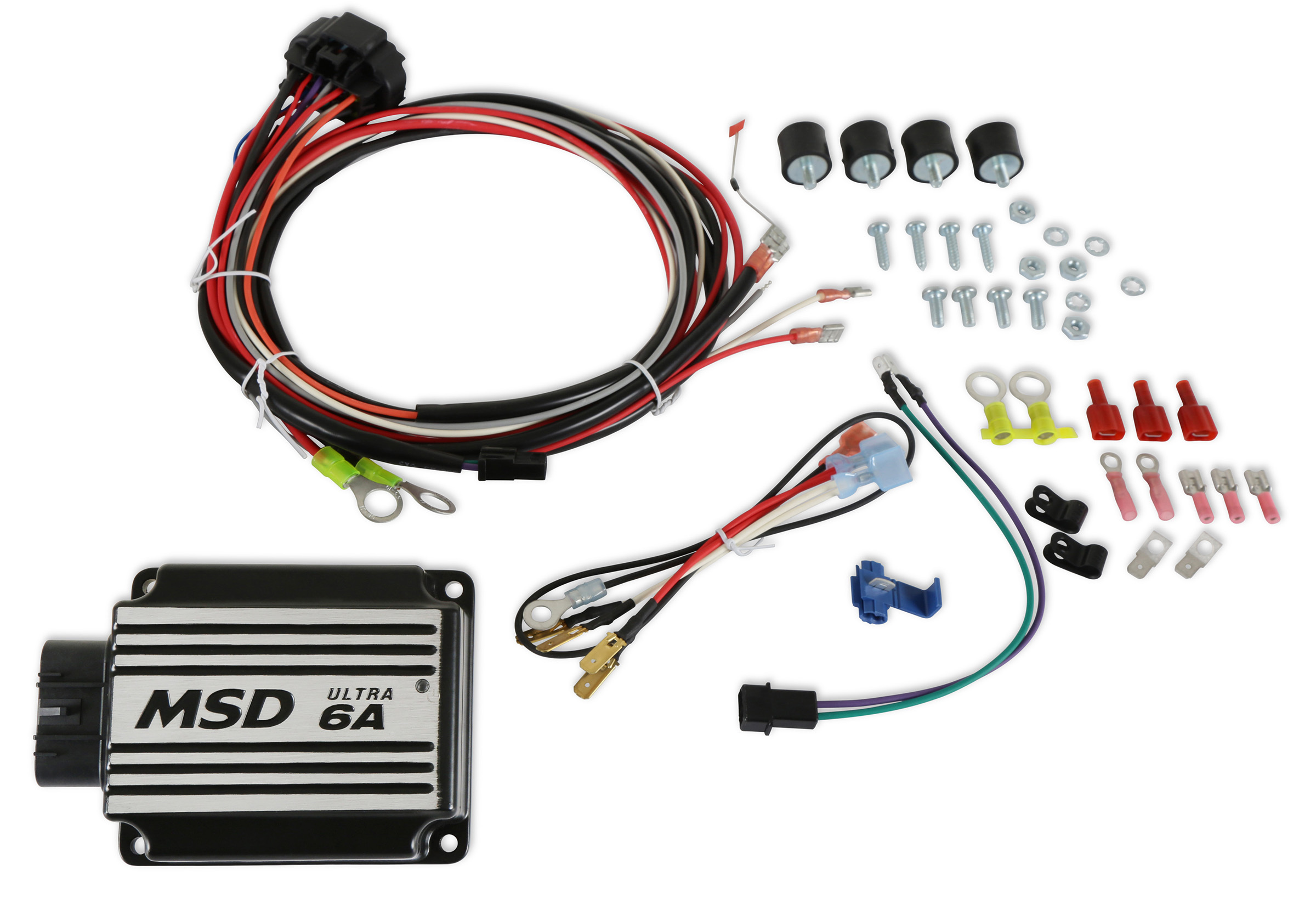

• Plug and play upgrade for existing 6201 MSD 6A installations compatible with 4, 6, and 8 cylinder distributor engines and includes tach output
• Backed by a 1-Year Warranty

When you roll into the throttle and push your engine toward redline, you need ignition performance that keeps up with every shift and every surge of RPM. Stock inductive systems can struggle at higher engine speeds, leaving power on the table when you want it most. For drivers who demand crisp throttle response and reliable spark energy from idle to full song, the MSD Ultra 6A Ignition Control Box.

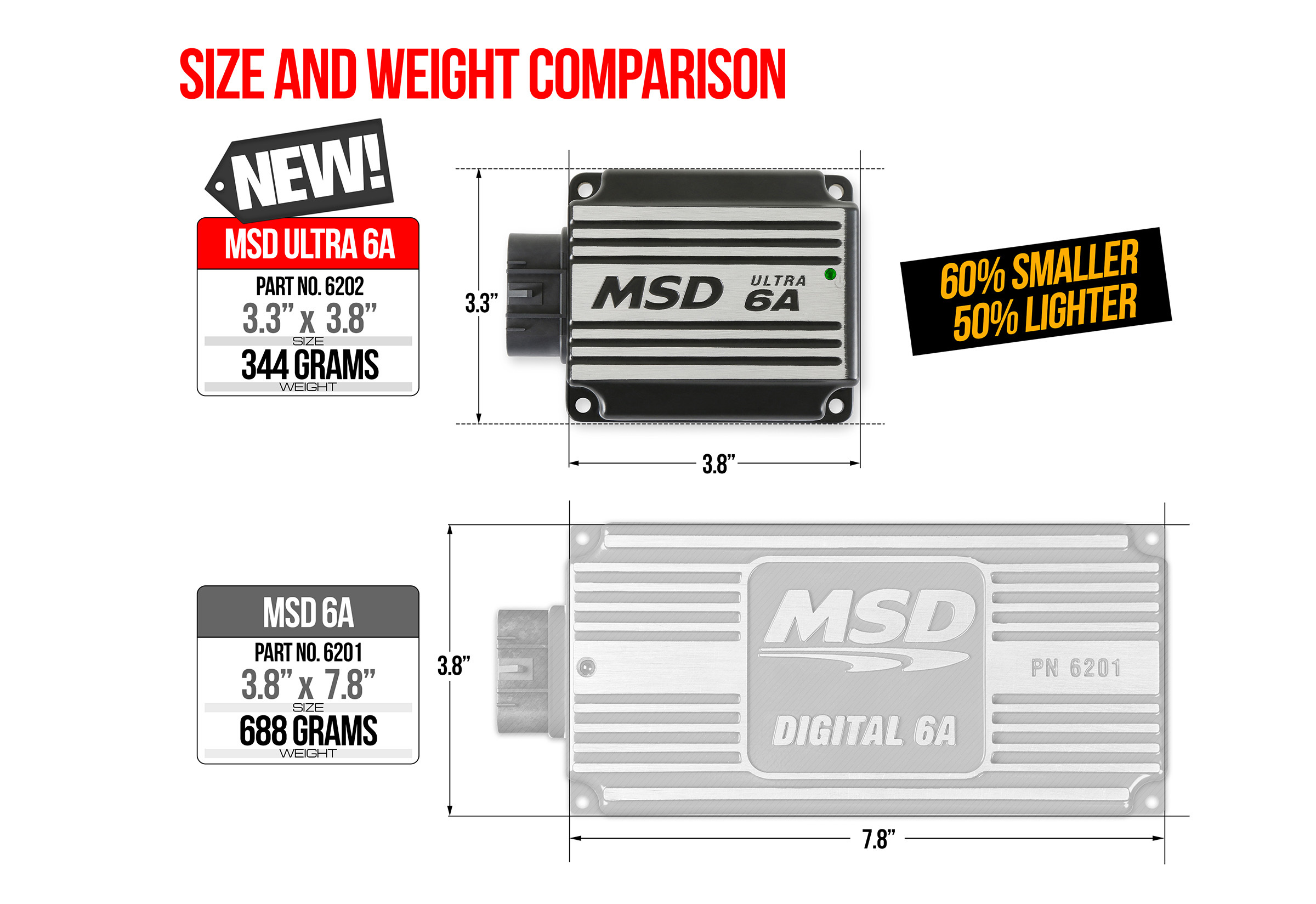

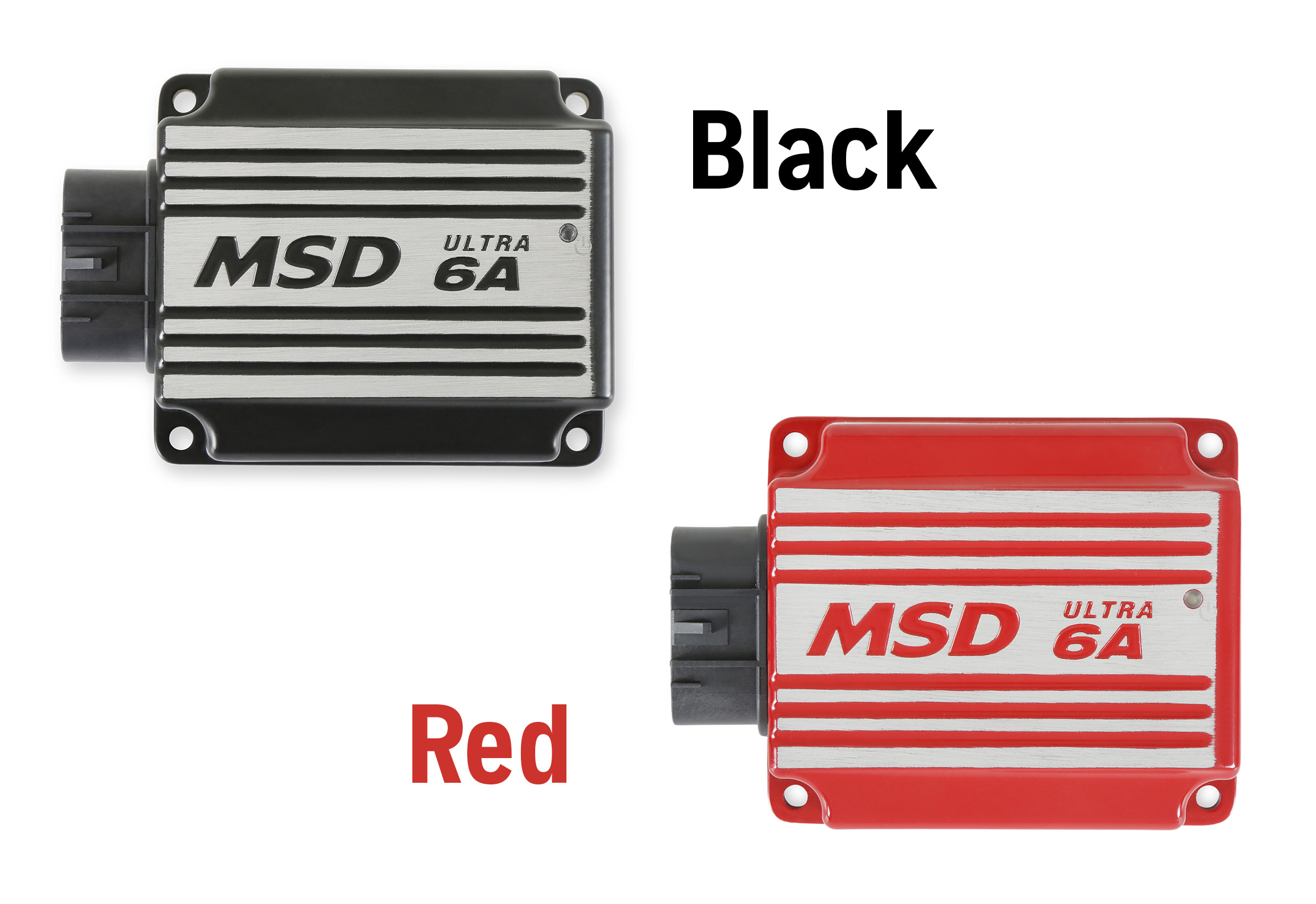

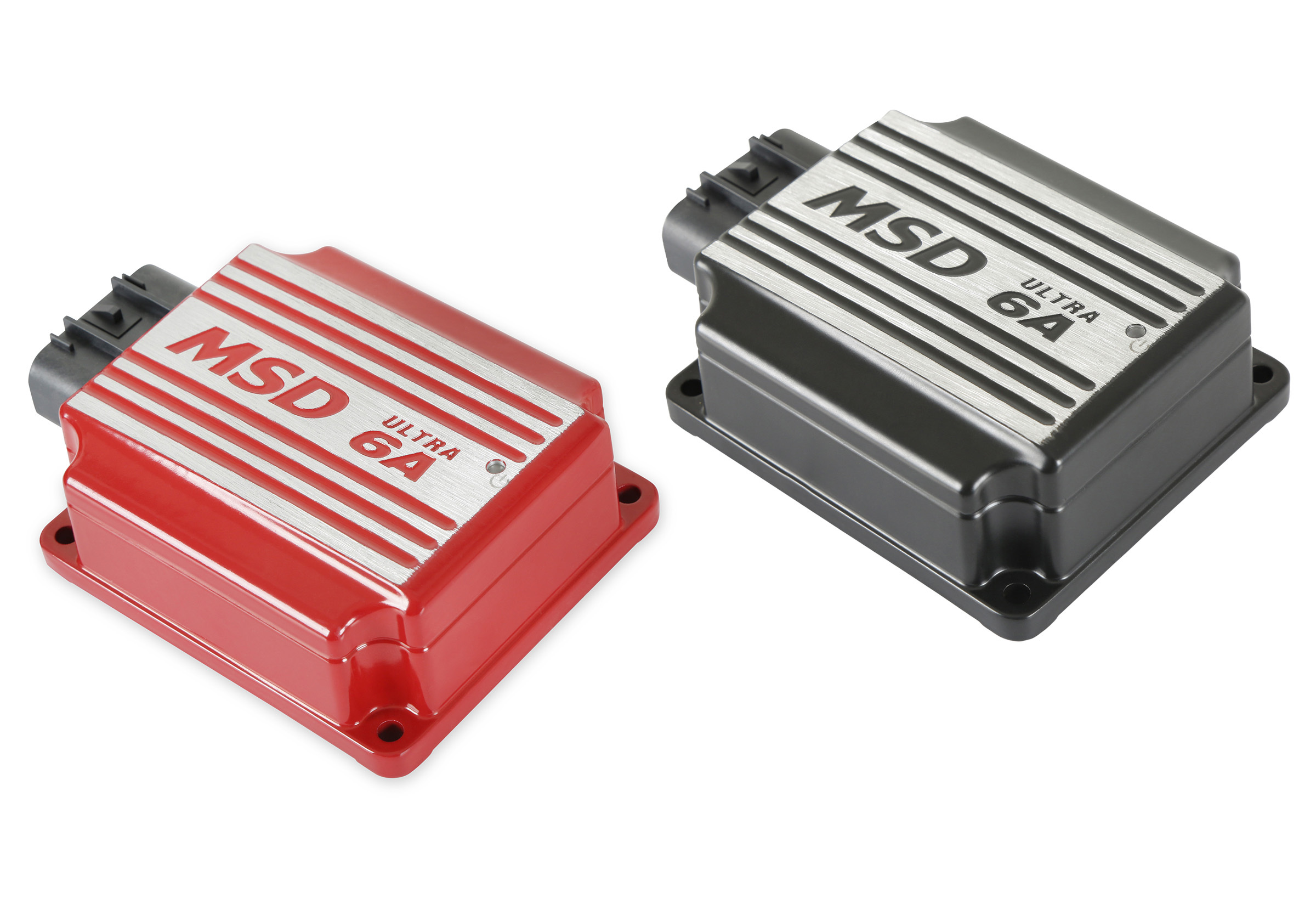

The MSD Ultra 6A Ignition Control Box uses a capacitive discharge ignition design that delivers multiple powerful sparks to ensure complete combustion and consistent performance. Unlike inductive ignitions that lose coil charge time at higher RPM, this system maintains high spark energy of 135mJ to 150mJ for every firing, supported by a high speed controller that makes rapid compensations to output voltage while maintaining precise timing. The circuits are thoroughly filtered for protection against Electro Magnetic Interference and the unit is fully protected against open coil, shorted coil, and open load conditions. It operates on most 7 to 28 volt electrical systems with 12 to 15 volts and 7 volt start capability, draws 1.1 amp per 1,000 RPM, and supports up to 15,000 RPM with 14.4 volts. Designed as a plug and play upgrade for current 6201 MSD 6A installations, it connects to points and magnetic pickups, installs easily on 4, 6, and 8 cylinder engines with distributors, and includes a tach output. The compact housing delivers full MSD power while being 60 percent smaller and 50 percent lighter than the MSD Digital 6A, and it is available in black or red.

With a new processor and board design that improve efficiency, reduce heat, and maximize spark energy with less current draw, this ignition control box enhances starting, sharpens throttle response, and supports high RPM performance when paired with compatible coils. It is a compact yet powerful upgrade for serious street or track applications. Backed by a 1-Year Warranty.
