- The MSD Ultra 6AL Plus Ignition Control Box delivers digital capacitive discharge multi spark performance with advanced timing and rev control for serious street and track applications
- Up to 45000 volts with 135mJ to 150mJ of consistent spark energy from idle to redline

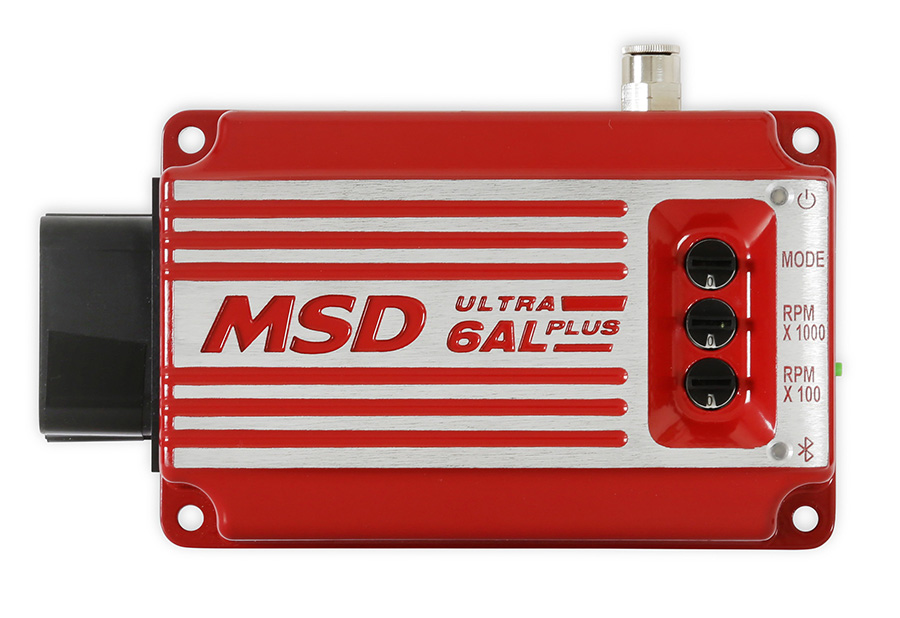

- Built in tri step RPM limiter with adjustable launch, burnout, and maximum race settings via rotary dials or mobile app with Bluetooth service available only in the USA and Canada
- Programmable step retard and start retard options with up to 35 degrees of total timing control
- Boost dependent timing control up to 400 kPA using an internal 4 BAR sensor with 2D and 3D programmable timing tables through app or USB connection
- Compatible with 4, 6, and 8 cylinder engines using points, magnetic pickup, Hall, or crank trigger distributors and operating on 7 to 28 volt systems up to 15000 RPM
- Backed by a 1-Year Warranty
When every fraction of a second counts, your ignition system has to deliver instant response, consistent spark energy, and total control from launch to redline. Whether you are dialing in a boosted street machine or fine tuning a weekend track car, having precise timing and rev control at your fingertips makes all the difference. Built to deliver full MSD power in a compact and feature packed design, the MSD Ultra 6AL Plus Ignition Control Box.

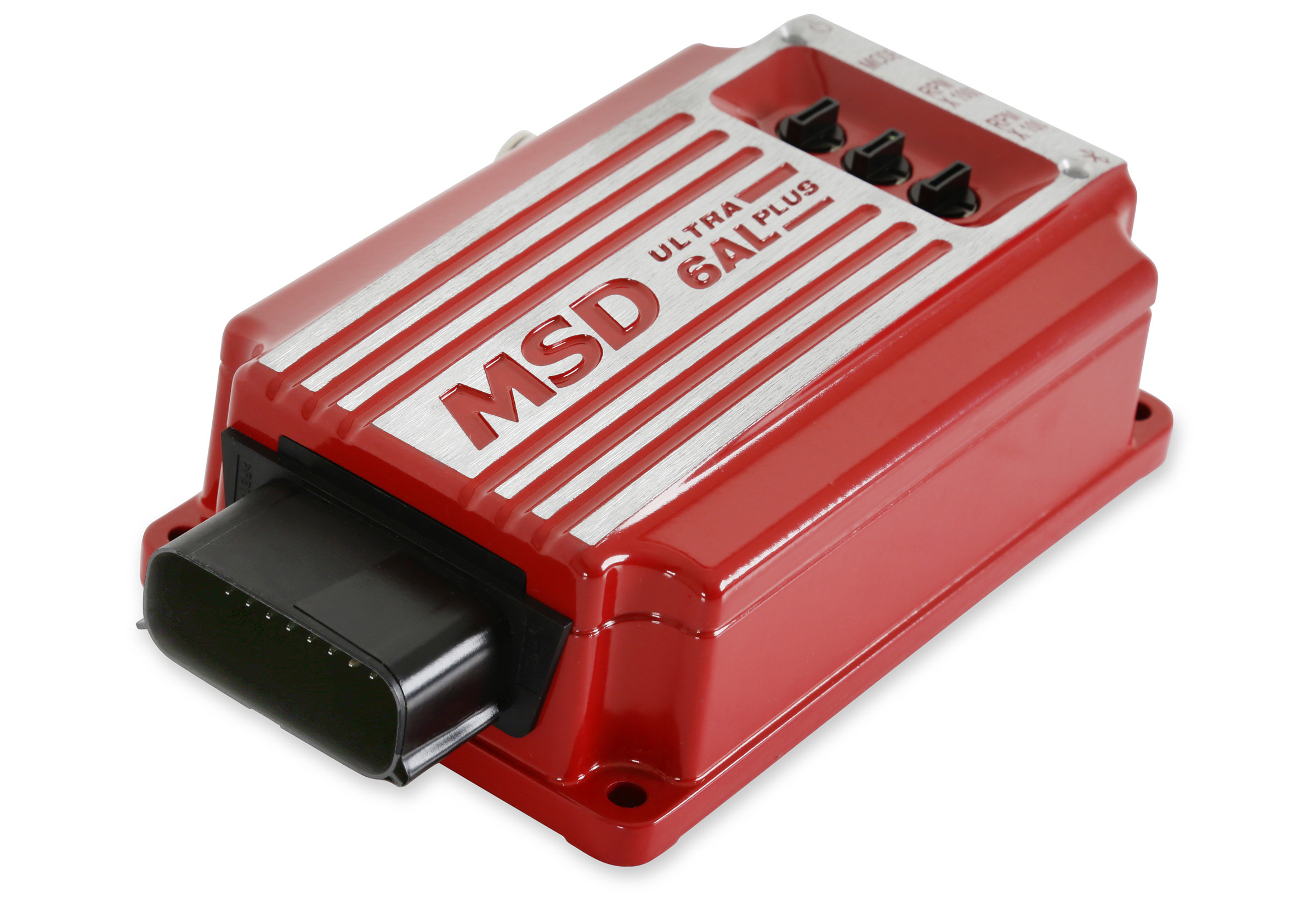

The MSD Ultra 6AL Plus Ignition Control Box is a digital capacitive discharge multi spark ignition system that delivers up to 45000 volts with a consistent spark energy of 135mJ to 150mJ from idle to redline. It features a built in tri step RPM rev limiter with launch, burnout, and max race RPM settings that can be adjusted through rotary dials or the MSD Ultra 6AL app, with Bluetooth service available only within the USA and Canada. Programmable step retard includes on ramp time, off delay, off ramp time, and engine RPM activation, along with start retard options of 0, 10, or 20 degrees and a maximum programmable retard of 35 degrees. It supports boost dependent timing control up to 400 kPA through an internal 4 BAR sensor and allows programmable timing curves in 2D plots or 3D tables using a mobile app or MSDView software via the integrated USB port. Designed for 4, 6, and 8 cylinder engines, it connects to points, magnetic pickup, and Hall or crank trigger distributors, operates on most 7 to 28 volt systems, and supports high RPM operation up to 15000 RPM with 14.4 volts. Fully protected against open or shorted coil conditions, it offers high conversion efficiency for minimal heat and reduced current draw, includes a wiring harness, tach output, and is available in black or red.
With powerful multiple spark discharge, enhanced spark duration across 18 degrees of crankshaft rotation, and advanced programmability for launch timing and boost control, this ignition box is engineered for serious performance applications. It is ideal for naturally aspirated or moderately boosted combinations seeking improved throttle response, quicker starting, and precise ignition management. Backed by a 1-Year Warranty.
